PS5 HDMI Port Repair Newcastle – No Display, No Signal Fixed Fast
PS5 turns on but no signal on the TV? Bent or ripped HDMI port? No Fuss Computers offers professional PS5 HDMI port replacement in Newcastle using proper tools, microsoldering and quality parts – not soldering-iron guesswork.
- • Fixed-price PS5 HDMI port replacement
- • Board-level repairs for lifted pads & trace damage
- • 3-month warranty on repair
- • Local workshop – no sending consoles away for weeks
Shop 193 Pacific Hwy, Charlestown NSW • Established 2015
PlayStation 5 HDMI Port Replacement
No Fuss Computer & Electronic Solutions – Newcastle
Common PS5 HDMI Problems We See Every Week
We see the same PS5 HDMI failures over and over again across Newcastle, Lake Macquarie and the Hunter. If your console is doing any of the below, the HDMI port or the HDMI circuit on the board is most likely damaged.
- PS5 turns on but TV says “No Signal”
- Loose or wiggly HDMI cable at the back of the console
- Bent, broken, or missing pins in the HDMI port
- Port pushed in or physically damaged from a hit or drop
- Intermittent signal – cuts out when the console moves
- Artifactual / distorted picture caused by HDMI damage
- No output even after trying different HDMI cables/TVs
- Previous “repaired” port failed again after a short time
Why PS5 HDMI Ports Fail (And Why DIY Usually Ends Badly)
PS5 HDMI ports sit right at the back of the console and cop all the abuse – bumps, kids tripping on cables, consoles being moved while plugged in, cheap tight HDMI leads and wall mounts with no cable clearance.
The port is soldered to the motherboard with tiny anchor points and signal pads. When the connector is stressed, those pads lift or tear off the board. A basic soldering iron and YouTube video isn’t enough – the job requires:
- Hot air rework station with proper temperature control
- Microscope for inspecting pads and traces
- Correct PS5 HDMI replacement port
- Board-level repair skills to rebuild missing pads and tracks
We regularly have to fix “second-hand” jobs where someone has tried to replace the port and torn half the pads off the board. Getting it done properly the first time usually works out cheaper than trying multiple failed attempts.

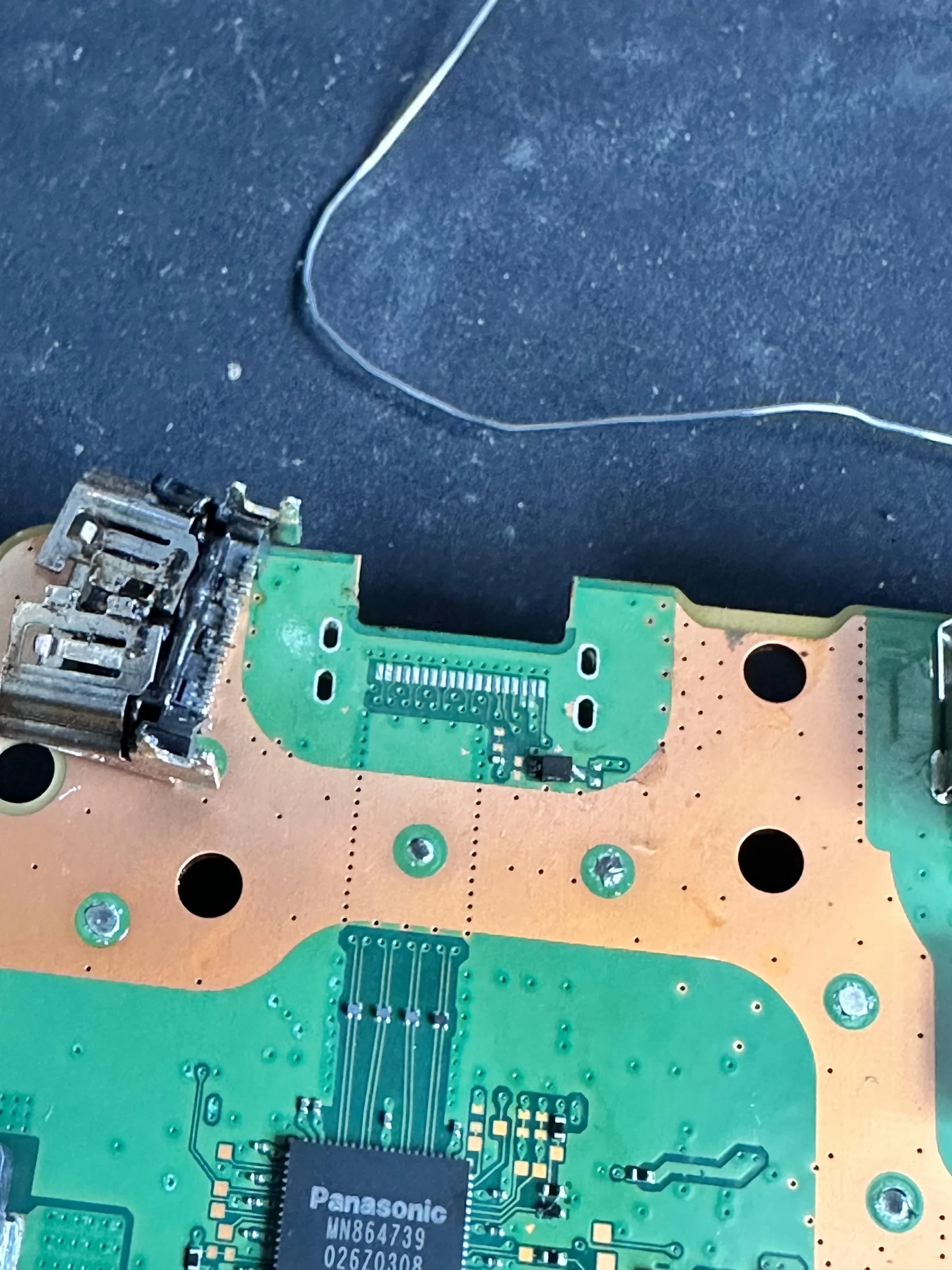

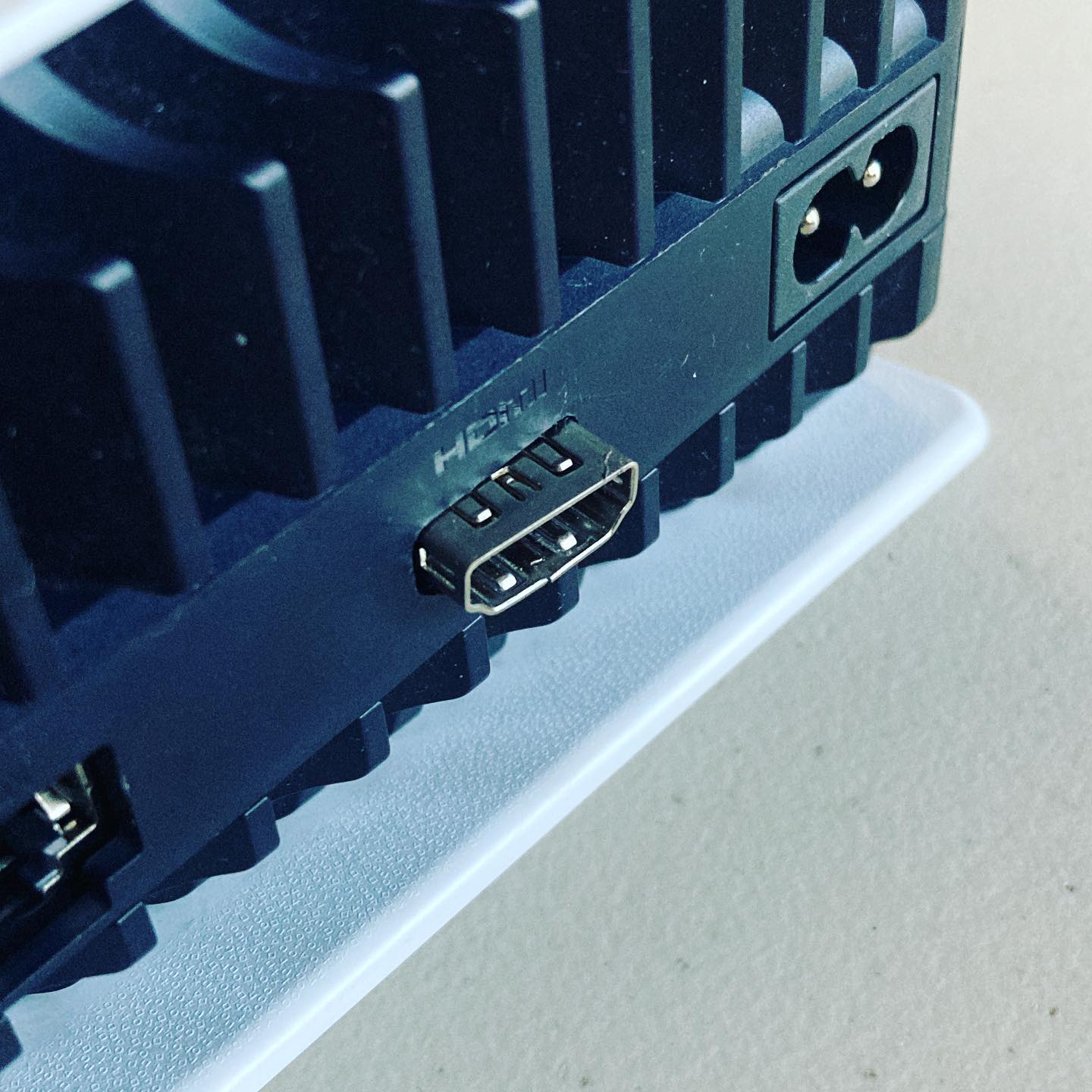

Real PS5 HDMI Damage We See in the Workshop
These are real examples from our bench in Charlestown – bent ports, ripped pads and repaired boards. If your HDMI port looks anything like this, it can usually be fixed properly with the right tools and experience.
Watch a PS5 HDMI Port Repair in Our Workshop
Want to see how a real PS5 HDMI repair is done on the bench? This is Ethan working through a live HDMI port replacement in our Charlestown workshop.
@nofusscomputers PS5 HDMI port repair on the bench at No Fuss Computers Newcastle.
TikTok
Our PS5 HDMI Repair Process
- Initial inspection & confirmation – We test the console, HDMI cable and TV input to confirm it’s actually an HDMI fault.
- Disassembly – The PS5 is carefully stripped down, keeping track of all shields, screws and cables.
- Board-level assessment – We inspect the HDMI port and surrounding chips under a microscope to check for pad damage or liquid.
- Old port removal – Using hot air rework, we remove the damaged port without overheating nearby components.
- Pad and trace repair – Any lifted or missing pads are rebuilt where possible using micro jumpers and proper flux.

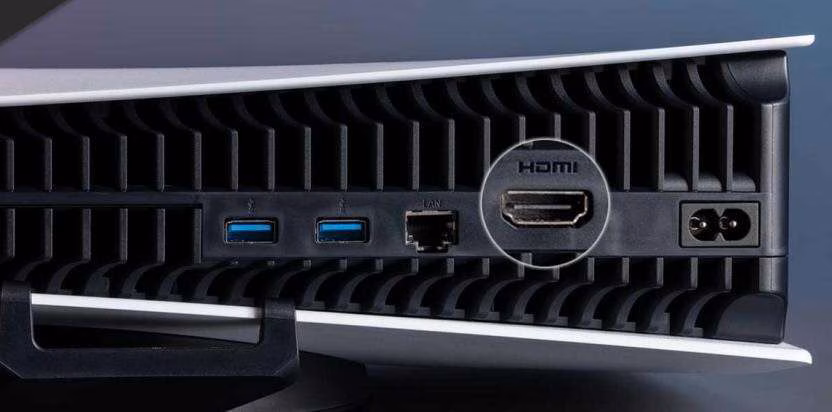

- New HDMI port installation – A new quality HDMI connector is installed and solder joints are inspected under magnification.
- Reassembly & cleaning – The console is reassembled, dust is cleaned out and thermal paste checked if required.
- Stress testing – We test multiple cables, wiggle the connector, and make sure video output is stable before sign-off.
Pricing, Turnaround & Warranty
We keep pricing simple and transparent for PS5 HDMI repairs in Newcastle.
Standard PS5 HDMI Port Replacement
Fixed-price HDMI port replacement for physically damaged ports with intact pads and no severe board damage.
Includes:
- New HDMI connector
- Board-level removal & installation
- Signal testing and verification
Contact us for current pricing and availability.
Advanced Board Repairs (Severe Damage)
For consoles where the HDMI port has been ripped off and pads or tracks have been torn from the board.
- Microsoldering and jumper wire work
- Additional diagnostics of the HDMI IC if required
- More complex, case-by-case pricing
In some extreme cases, the board may not be economically repairable – we’ll always be upfront about this.
Warranty: All PS5 HDMI repairs come with a 3-month warranty on the work performed, provided the console is used in a normal way and not subjected to further physical damage.
Is PS5 HDMI Repair Worth It, Or Should I Replace the Console?
In most cases, repairing a faulty HDMI port is far cheaper than replacing the entire console – especially given PS5 availability and pricing in Australia.
- You keep your saves and data – replacing the console often means losing local game data.
- Less electronic waste – good for your wallet and the planet.
- Known history – you already know how your console has been used and cared for.
If the board has severe liquid damage, power issues or multiple other faults, we’ll tell you straight if it’s not worth the money. Our goal is to give you a clear yes/no answer, not drag out a dead console.
Why Newcastle Gamers Choose No Fuss Computers
- Local Charlestown workshop – established 2015
- Experienced with PS5, PS4, Xbox Series X|S and more
- Proper tools, not heat guns and guessing
- Clear communication, no surprise charges
- Fast turnaround where parts and workload allow
- In-house warranty and support
- Friendly team that actually games
- Plenty of parking and easy drop-off
PS5 HDMI Repair – Frequently Asked Questions
How long does PS5 HDMI repair take?
Turnaround depends on workload and the level of damage, but most straightforward HDMI port replacements are usually completed within a few business days once the console is booked in. Extremely damaged boards or heavy liquid damage can take longer.
Will my game data be safe?
In a standard HDMI repair, your internal storage is not touched and your saves should remain as they are. If we find additional faults that could affect storage, we’ll contact you before going any further.
Can a bad TV or HDMI cable damage my PS5 HDMI port?
Bad or overly tight HDMI cables, awkward wall mounts and tripping over leads are all common causes of port damage. We always recommend using quality cables and making sure there is enough slack behind the console.
Do you repair other PS5 issues as well?
Yes. We can also help with PS5 not powering on, overheating, loud fans, USB-C ports, storage upgrades and more. If you’re unsure what the problem is, bring the console in and we can assess it for you.
