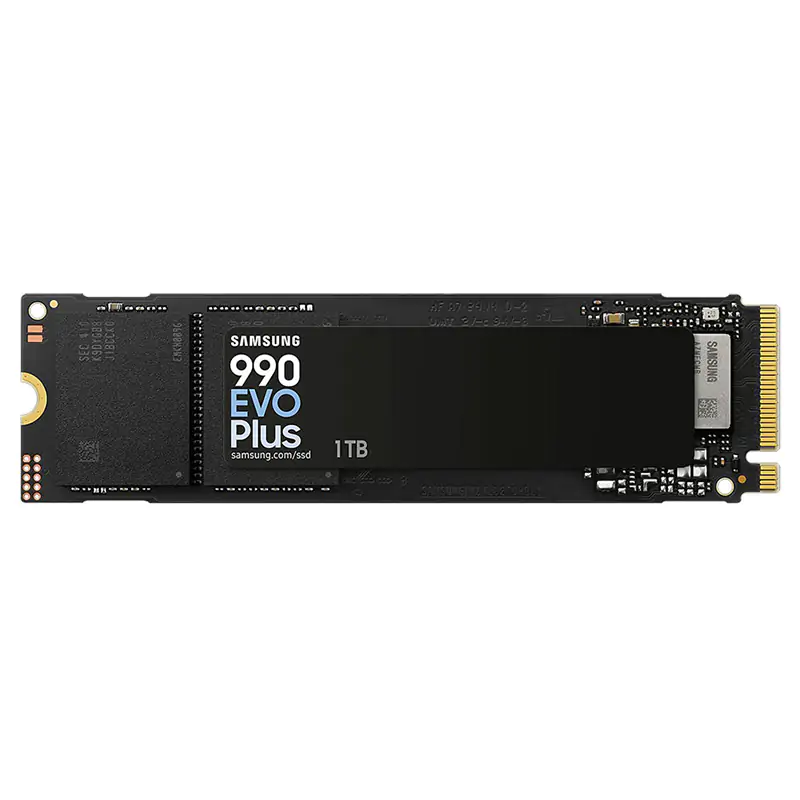

Samsung 990 EVO Plus 1TB PCIe 5.0/4.0 NVMe M.2 2280 SSD

Description

Samsung 990 EVO Plus 1 TB NVMe M.2 SSD (PCIe 4.0 / 5.0 Ready)

Think of this as Samsung’s sleek comeback to the high-performance SSD arena—DRAM-less, but fiercely efficient. It’s built on next-gen V-NAND and a four-channel Piccolo controller, squeezing blistering transfer speeds up to 7,250 MB/s read and 6,300 MB/s write. The nickel-coated controller not only delivers sustained performance but does so without guzzling power or overheating.

Backward-compatible with PCIe 4.0 x4 and forward-looking with PCIe 5.0 x2 support, this SSD bridges today’s systems and tomorrow’s tech. Smart band-aids like TurboWrite 2.0 and HMB (Host Memory Buffer) compensate for the lack of onboard DRAM, rushing data in and out with haste. Samsung’s Magician software keeps your firmware tuned, your drive secure, and your performance sharp. Reliable, fast, and economical—this is storage that works smarter, not harder.

Specifications (Manufacturer)

• Capacity: 1 TB

• Form Factor & Interface: M.2 2280, NVMe; PCIe 4.0×4 & PCIe 5.0×2 compatible

• NAND & Controller: 236-layer V-NAND V8 (TLC), Piccolo 4-channel controller (DRAMless with HMB)

• Sequential Performance: Up to 7,250 MB/s (read) • Up to 6,300 MB/s (write)

• Random Performance (4K): ~850,000 IOPS (read) • ~1,350,000 IOPS (write)

• Endurance: ~600 TB Written (TBW)

• Power Consumption: Typically around 4.3 W active

• Security & Encryption: AES 256-bit (Class 0), TCG/Opal 2.0, Microsoft eDrive support

• Software: Samsung Magician for firmware updates, monitoring, performance tuning

• Temperature Range: 0 °C to 70 °C operational

• Warranty: 5-year limited coverage
