Lian Li EG1000G Power Supply

Description

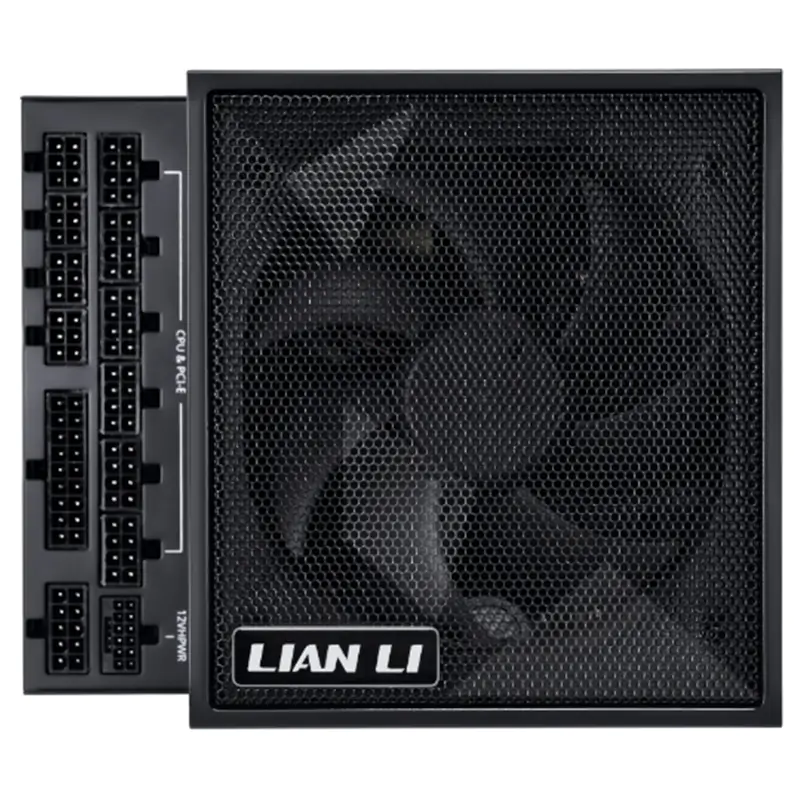

Lian Li EG1000G Edge Gold 1000 W ATX 3.1 Power Supply

This PSU plays a subtle game of elegance and future-proofing. Its L-shaped design is tailored to dual-chamber cases—cable management gets a dramatic upgrade when the connectors face outward. Fully modular and decked with 80 PLUS Gold efficiency, it balances efficiency and quiet operation like a seasoned pro.

But wait—there’s more finesse. You get a detachable hub for fans and USB ports, so every accessory can plug in neatly without adding cable chaos. And it’s ready for tomorrow’s hardware with PCIe 5.1 compliance and a native 12V-2×6 GPU cable. Add in a magnetic dust filter and a long 10-year warranty, and it’s a literal and figurative edge in PSU design.

Specifications (Manufacturer)

• Wattage: 1,000 W continuous output

• Form Factor & Design: ATX 3.1, unique L-shaped chassis for dual-chamber layouts

• Efficiency Certifications: 80 PLUS Gold, Cybenetics Gold (PPLP Gold in select models)

• Connector Features: PCIe 5.1-ready, includes native 12V-2×6 600 W GPU connector

• Modularity & Extras: Fully modular cables; detachable Edge Hub for up to 4 USB-2.0 ports and 6 PWM fan headers

• Cooling: 120 mm FDB (Fluid Dynamic Bearing) fan; max speed ~2,400 RPM in higher-wattage versions

• Dust Management: Removable magnetic dust filter over intake fan

• Build Quality: Equipped with industrial-grade EPCOS capacitors and alloy copper terminals

• Protection Features: OCP, OVP, OTP, OPP, SCP, UVP—all covered

• Connectivity: Ample outputs including Motherboard (24-pin), CPU (8/4+4 pin), GPU (PCIe 6+2 and 12V-2×6), SATA, Molex

• Power Specs: Active PFC, Power Factor >0.90 under load

• Dimensions: Approx. 182 mm (depth) × 86 mm (width) × 150 mm (height)

• Warranty: 10 years for PSU, with hub covered separately
