Gigabyte B760M GAMING X AX Motherboard

Description

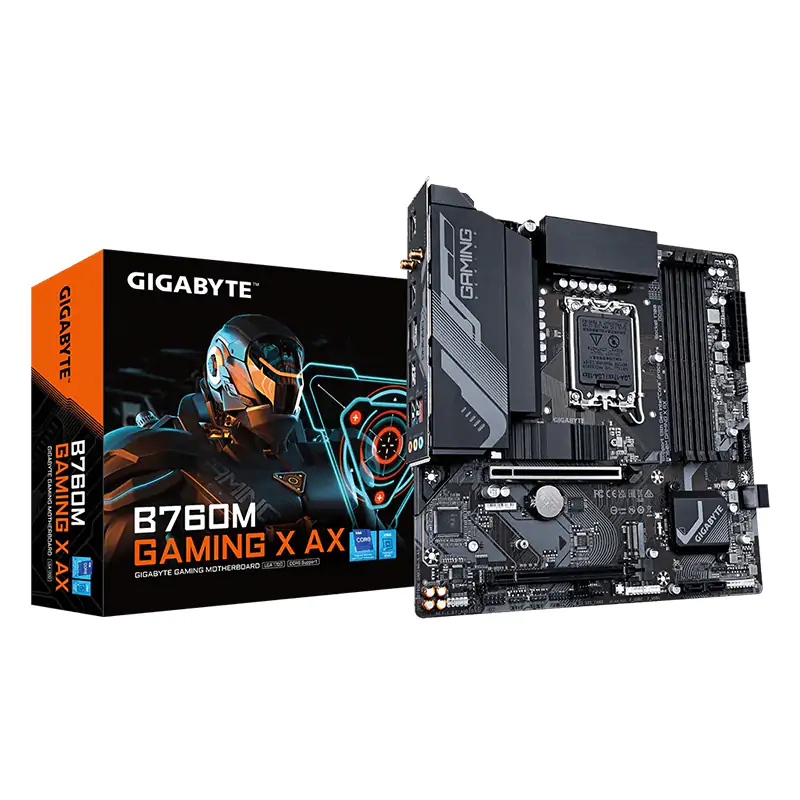

Gigabyte B760M GAMING X AX DDR5 Motherboard

This micro-ATX board is built for practical fighters, not attention-seeking showboats. It brings solid power delivery, DDR5 support, and next-gen PCIe coolness—all wrapped in a compact layout that’s ready for modern Intel builds. You’re talking 8+1+1 digital VRM phases dripped in durable heatsinks, dual PCIe 4.0 M.2 slots with thermal guards, and a quick-release slot for GPUs—no fuss, just thoughtful response under load.

Connectivity pays respect to the future: 2.5 Gb Ethernet, Wi-Fi 6E, Bluetooth, plus a USB-C front panel port delivering 10 Gb/s. Gigabyte’s Smart Fan 6 keeps temperatures civil with multiple sensors and hybrid headers, while Q-Flash Plus lets you flash BIOS even without RAM or CPU installed. A solid choice for tight, powerful builds that benefit from smart design, not ego.

Specifications (Manufacturer)

• Form Factor / Socket: Micro-ATX, LGA 1700 (Intel 12th/13th/14th Gen CPUs)

• Chipset: Intel B760

• Power Delivery: Hybrid 8+1+1 DR MOS phases with solid thermal heatsinks and M.2 thermal guard

• Memory: 4 × DDR5 DIMM slots, dual channel, up to 192 GB (supports XMP up to ~7600 MT/s OC)

• Expansion Slots:

  • 1 × PCIe 4.0 ×16 (with EZ-Latch for easy GPU installation)

  • Extra PCIe x1 or x4 slots (chipset dependent)

• Storage:

  • 2 × PCIe 4.0 ×4 M.2 sockets (with thermal guards)

  • 4 × SATA III 6 Gb/s

• Networking:

  • Wired: Realtek 2.5 GbE LAN

  • Wireless: Wi-Fi 6E (802.11ax), Bluetooth (rev dependent on PCB)

• Rear I/O:

  • Display: 1 × HDMI, 1 × DisplayPort

  • USB: USB Gen2 Type-A and front-panel USB-C Gen2 (10 Gb/s), plus USB 3.2 Gen1 & Gen2, and USB 2.0

  • Audio: Hi-Fi 8-channel HD with noise-guard

  • Other: Antenna connectors, Q-Flash Plus BIOS button

• Cooling & Fan Headers: Smart Fan 6 system with multiple thermal sensors, hybrid fan/pump headers, and fan-stop support

• DIY Features:

  • Pre-mounted I/O shield

  • EZ-Latch PCIe slot

  • Clear CMOS & Reset jumpers, Debug LEDs

• Audio Codec: Realtek HD Audio, with premium caps and isolation guard

• Miscellaneous: Q-Flash Plus, Ultra Durable build quality, RGB Fusion headers (ARGB + RGB)

• Dimensions: ~244 × 244 mm (standard micro-ATX)
