Gigabyte B760M DS3H AX Motherboard

Description

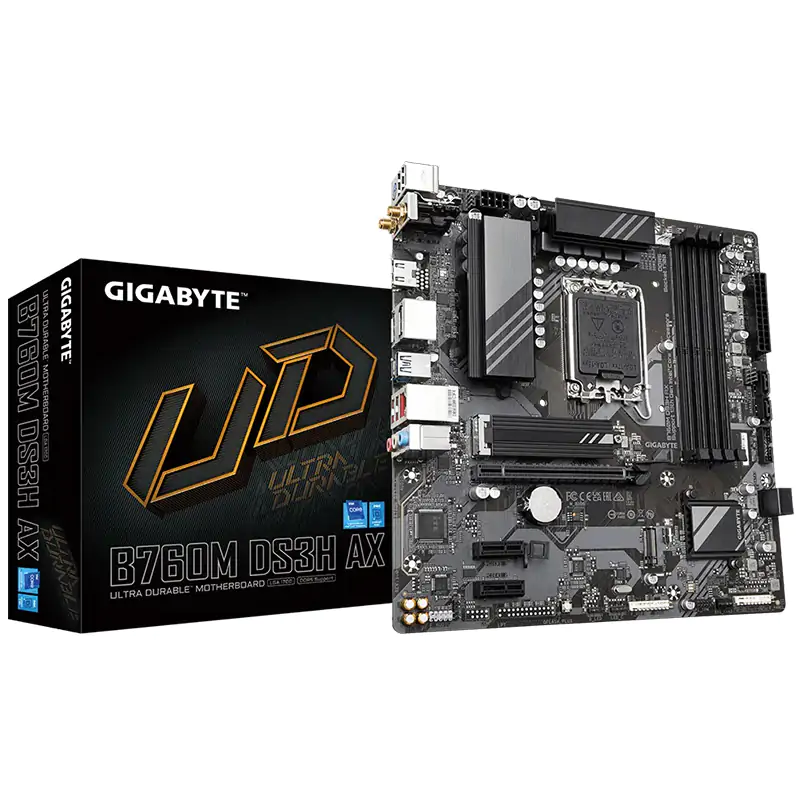

Gigabyte B760M DS3H AX DDR5 Micro-ATX Motherboard

A budget-friendly board that doesn’t cut corners where it counts. Supporting Intel’s 12th, 13th, and 14th Gen processors, it brings DDR5 support, Wi-Fi 6E, and 2.5 GbE LAN into a compact micro-ATX package. Its 6+2+1 power phase design keeps things stable under load, while dual PCIe 4.0 M.2 slots with thermal guards provide fast storage with cool reliability.

Smart Fan 6 ensures temperature control across the board, and EZ-Latch GPU mounting plus Q-Flash Plus BIOS updates simplify the DIY experience. Functional, compact, and efficient—ideal for mainstream Intel builds with modern connectivity baked in.

Specifications (Manufacturer)

• Form Factor / Socket: Micro-ATX / LGA 1700

• Chipset: Intel B760

• CPU Support: Intel 12th, 13th, and 14th Gen Core, Pentium, Celeron

• Power Delivery: 6+2+1-phase digital VRM

• Memory Support: 4 × DDR5 DIMM slots, dual-channel, up to 192 GB, XMP overclocking up to DDR5-7600

• Expansion Slots:

  • 1 × PCIe 4.0 ×16 with EZ-Latch

• Storage:

  • 2 × M.2 PCIe 4.0 ×4 with thermal guards

  • 4 × SATA III 6 Gb/s ports (RAID 0/1/10 supported)

• Networking:

  • 2.5 Gb Ethernet LAN

  • Wi-Fi 6E + Bluetooth

• Rear I/O Ports:

  • USB-C 10 Gb/s

  • USB 3.2 Gen 1, USB 2.0

  • HDMI + DisplayPort

  • Wi-Fi antenna connectors

  • Q-Flash Plus BIOS button

• Cooling & Fan Control: Smart Fan 6 with multiple sensors, hybrid fan/pump headers, and fan-stop support

• DIY Features: Pre-mounted I/O shield, EZ-Latch PCIe, Q-Flash Plus

• Audio: 7.1-channel HD audio with premium capacitors and noise guard

• Dimensions: 244 × 244 mm (micro-ATX standard)
