DeepCool PL650D 650W Power Supply

Description

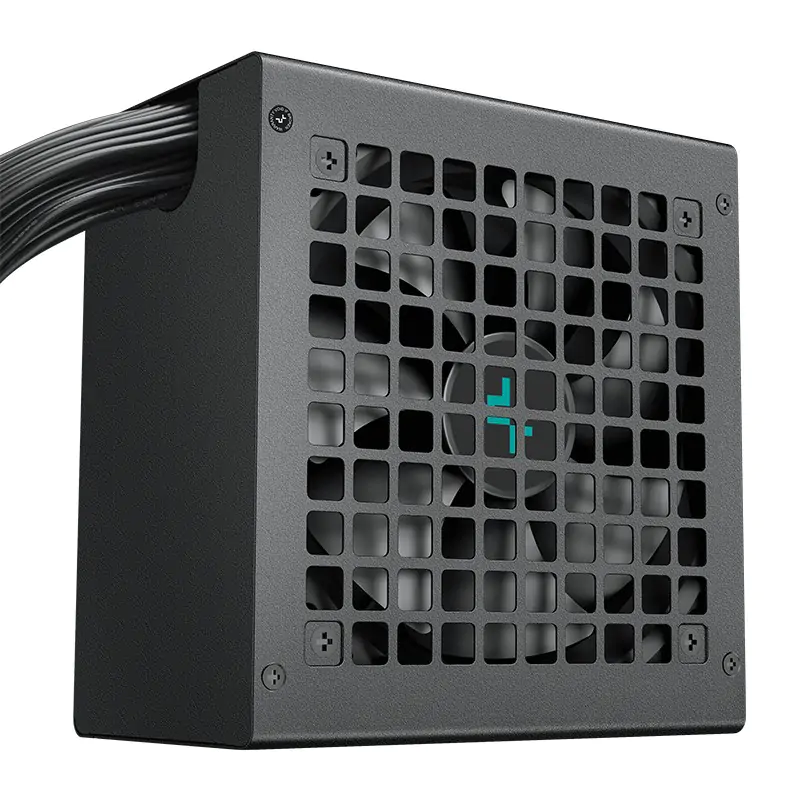

DeepCool PL650D 650 W ATX 3.x Power Supply

Built for builders who want modern functionality without overpaying, the DeepCool PL650D delivers a smart balance of efficiency, forward-ready features, and dependability. Certified 80 PLUS Bronze (around 85% efficiency), this non-modular PSU checks the ATX 3.0 box, including a native 12VHPWR cable for PCIe 5.0 graphics—a rare inclusion at this price point.

Good voltage stability and a full set of protections (think OVP, OPP, SCP, OCP, UVP, SIP, NLO) ensure your system stays protected under load. It’s cooled by a quiet 120 mm hydraulic-bearing fan, and boasts a healthy 16 ms hold-up time. Throw in a solid 5-year warranty and reliable performance, and the PL650D earns its place in budget-conscious, future-aware builds.

Specifications (Manufacturer)

• Wattage: 650 W continuous output

• Form Factor / Compliance: ATX 3.0 / 3.x, PCIe 5.0-ready (native 12V-2×6 cable)

• Efficiency: 80 PLUS Bronze (~85% typical), Cybenetics Silver

• Fan: 120 mm Hydraulic Bearing (Hydro Bearing); quiet operation

• Design: Non-modular; tidy flat cables

• Hold-Up Time: ≥16 ms at full load

• Protection Suite: OPP, OVP, SCP, OCP, UVP, SIP, NLO

• Cooling & Topology: Active PFC with DC-to-DC voltage regulation

• Connectors:

  • 1 × 24-pin ATX

  • 2 × 4+4-pin CPU (EPS)

  • 3 × 6+2-pin PCIe

  • 1 × 12V-2×6 (12VHPWR) for next-gen GPUs

  • 6 × SATA power

  • 2 × Molex peripherals

• Dimensions: Approximately 150 × 140 × 86 mm

• Operating Conditions: 0–40 °C ambient; MTBF ~100,000 hours

• Warranty: 5 years
